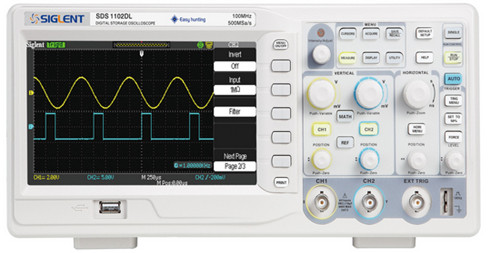

SDS1000DL Series
SIGLENT
,
전기전자계측기
,
오실로스코프
- 25MHz ~200MHz 대역폭
- 500MS/s 샘플링 속도
- 32Kpts 메모리
- 2 아날로그 채널
- 500MS/s 샘플링 속도
- 32Kpts 메모리
- 2 아날로그 채널
카탈로그 메뉴얼 도면
Product Details
SDS1000DL Series
- 25MHz ~200MHz 대역폭
- 500MS/s 샘플링 속도
- 32Kpts 메모리
- 2 아날로그 채널
- TFT-LCD 8×18 div color display
- Standard interfaces：
- USB Host：support USB storage and FW upgrade
- USB Device：support remote control and PictBridge print
- RS232 and Pass/Fail
| Series | Bandwidth | Channels | Real time sampling rate | Memory depth |
| SDS1202DL | 200MHz | 2CH | 500M Sa/s | 32Kpts |
| SDS1102DL | 100MHz | 2CH | 500M Sa/s | 32Kpts |
| SDS1052DL | 50MHz | 2CH | 500M Sa/s | 32Kpts |
| SDS1022DL | 25MHz | 2CH | 500M Sa/s | 32Kpts |
Design Features:
Ordering Information
| MODEL | SDS1000DL SERIES | |
| SDS1022 25MHz 2 channel | ||
| SDS1052 50MHz 2 channel | ||
| SDS1102 100MHz 2 channel | ||
| SDS1202 200MHz 2 channel | ||
| Standard accessories | A USB cable | |
| A QuickStart Guide | ||
| A product qualification certificate | ||
| Warranty Card | ||
| A power cord designed for the instrument and authorized by local country | ||
| 1：1/10：1 probe（Consistent with the number of channels you bought） | ||
| CD（contains EasyScope PC software） | ||
| Optional accessories | Isolated channel optional accessories | |
| SDS1000DL series oscilloscope portable bag | ||
